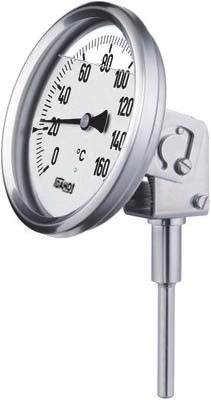

■ TBS Bi-metal Thermometer

- All Stainless Steel Construction (Case & Stem)

- IP65 / IP66 / IP67 / IP68 Protection Ratings

- Wide Temperature Ranges (-70℃ to +600℃)

- Bottom or Back Connection Available

- Various Process Connections Available

- Suitable for Outdoor and Harsh Industrial Environments

- Various Stem Lengths and Diameters Available

■ Product Overview

The TBS Series Bi-metal Thermometer is designed for industrial temperature measurement. Both the case and stem are manufactured from stainless steel, providing excellent corrosion resistance and durability. The hermetically sealed, weather-resistant construction together with protection ratings up to IP68 ensures reliable operation in outdoor and harsh industrial environments. With a wide selection of temperature ranges, process connections, stem lengths, and stem diameters, the TBS series can be configured for a broad range of industrial applications.

■ Applications

▶ Chemical & Petrochemical Industry

▶ Oil & Gas / Refineries

▶ Power Plants & Heavy Industry

▶ Shipbuilding Industry

▶ Food & Beverage Industry

▶ Pharmaceutical Industry

▶ General Industrial Process Measurement

■ Options

▶ Liquid Filling (Silicone Oil Filling for Vibration Resistance)

▶ Thermowell (DIN / EN Standard or Custom Design)

▶ Dual Scale (℃ / ℉ or ℉ / ℃)

▶ Adjustable Stem & Dial Orientation

▶ Safety Glass

▶ Special Temperature Ranges

▶ Higher Accuracy (±1.0% F.S)

▶ Stainless Steel 316 Construction

▶ Special Stem Lengths Available

■ General Specifications

Temperature ranges	-70℃ ~ +600℃
Accuracy	±5.0%, ±2.0%, ±1.0% F.S
Process Connection	G1/8, G1/4, G1/2, G3/4, G1/2 Female, NPT1/2, NPT1/2 Female, M8×1.25, M18×1.5, M20×1.5, M24×1.5
Material	Case / Stem / Connection : Stainless Steel 304 or 316
Stem Length	Approx. 45 to 400 mm (Special lengths available)
