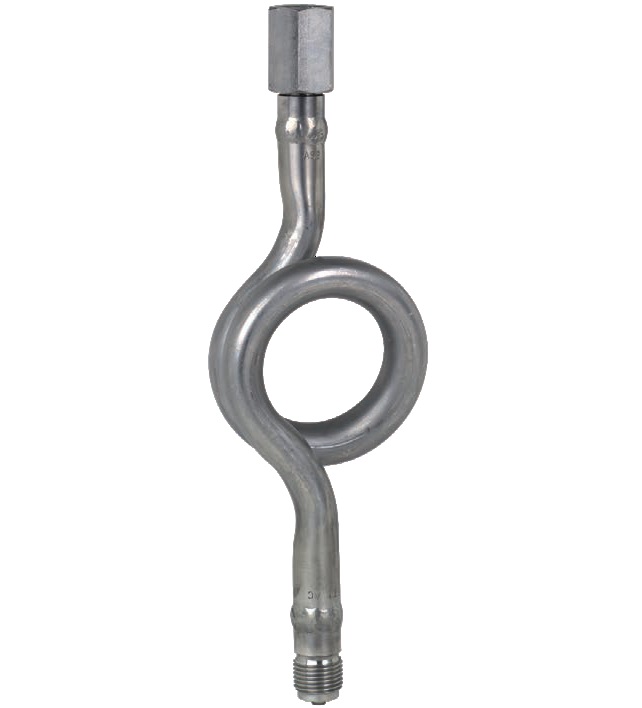

AC37 Syphon
The geometries of the syphons in accordance with DIN 16282 are divided into U-form and trumpet form.
Inside the syphon, condensate is collected, which prevents the ingress of hot media into the pressure measuring instrument.
It is recommended to fill the
syphon with a cooling seperating liquid before commissioning the pressure line.
Specification
|
Material |
Stainless steel Others on request |
|
Pipe |
3/8"(8A,
ø 17.3), SCH.40 (2.3t) 3/8"(8A,
ø 17.3), SCH.80 (3.2t) 1/2"(15A,
ø 21.7), SCH.40 (2.9t) 1/2"(15A,
ø 21.7), SCH.80 (3.9t) |
|
Connection |
Gauge connection :
Thread (F) Process connection
: Thread (M),
Weld-in, Flange |
