MDL + MAX.51x / for low pressure

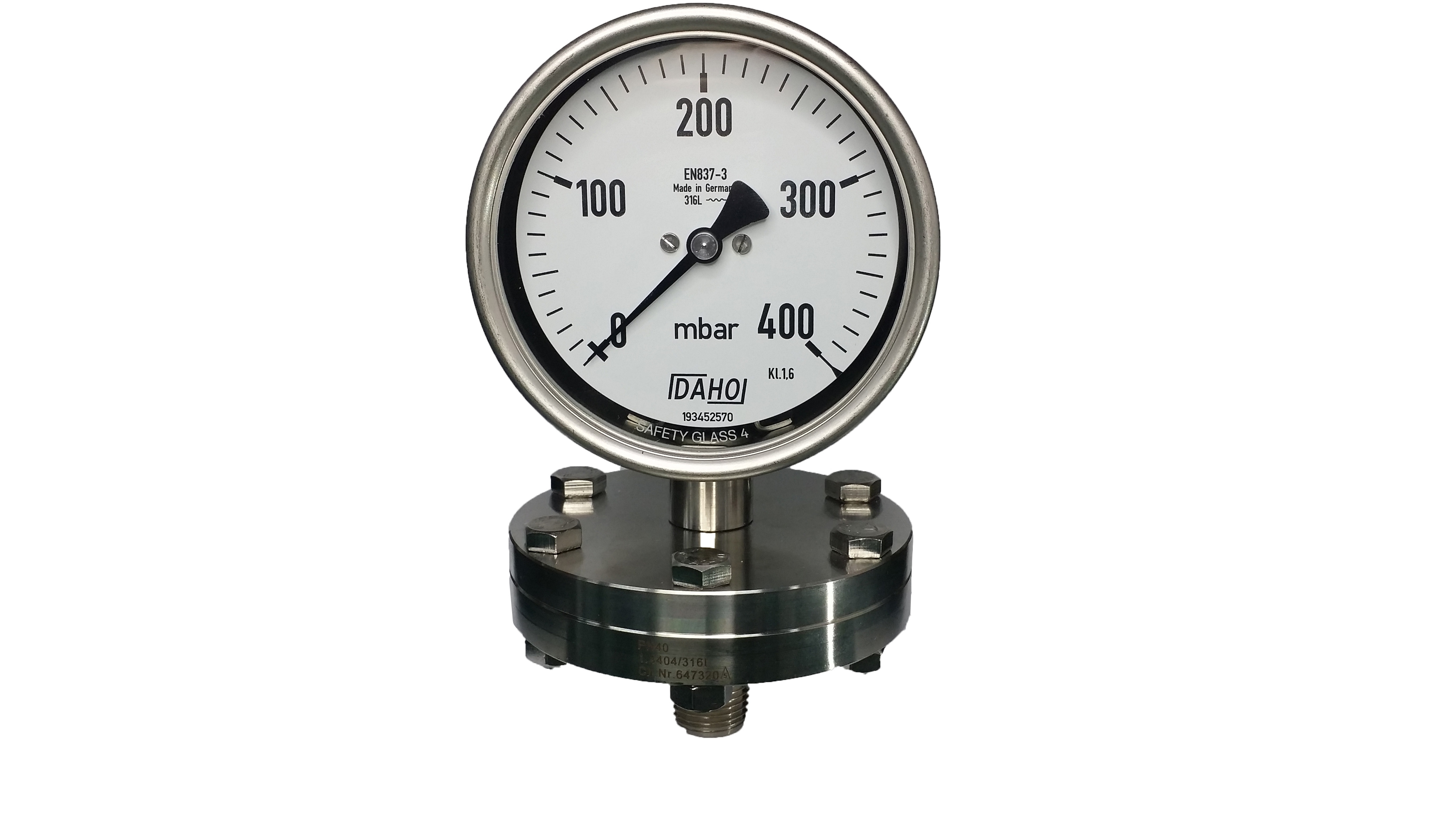

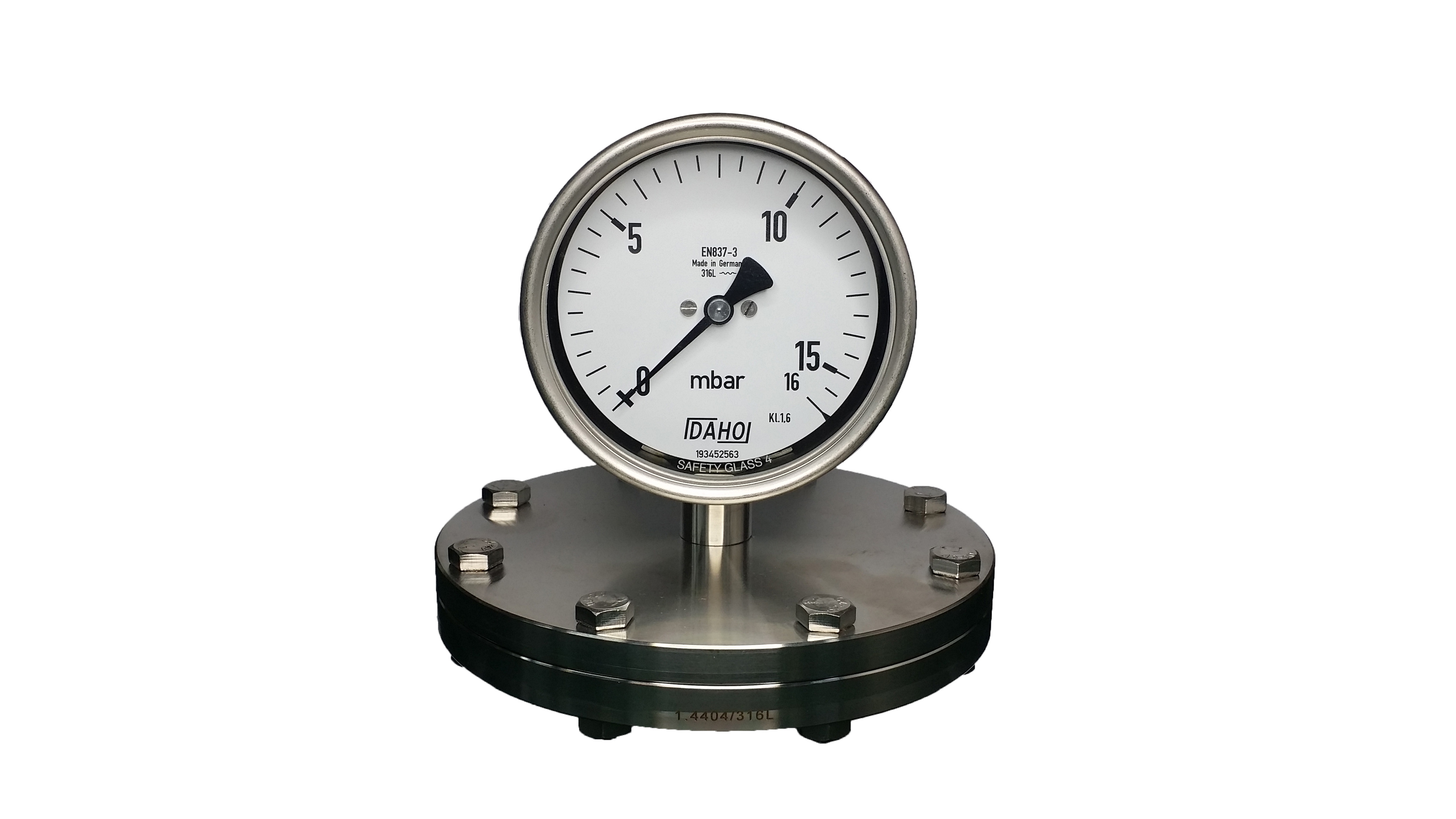

Pressure gauge with chemical seal series MDL
Series MDL is equipped with the specially designed dry type diaphragm. These pressure gauges are preferably used for low pressure range. Through the large working surface of the circular, corrugated diaphragm element, small pressure ranges can be measured reliably. Also, this special diaphragm offers a unique capability to use with all types of liquids, high-viscosity fluids, solids, and even corrosive chemicals.
Specification
Size | 100mm, 160mm |
Pressure range | 0…16 mbar to 0…400 mbar |
Accuracy class | Class 1.6 per EN 837-1 |
Process connection | Thread type G1/2B |
