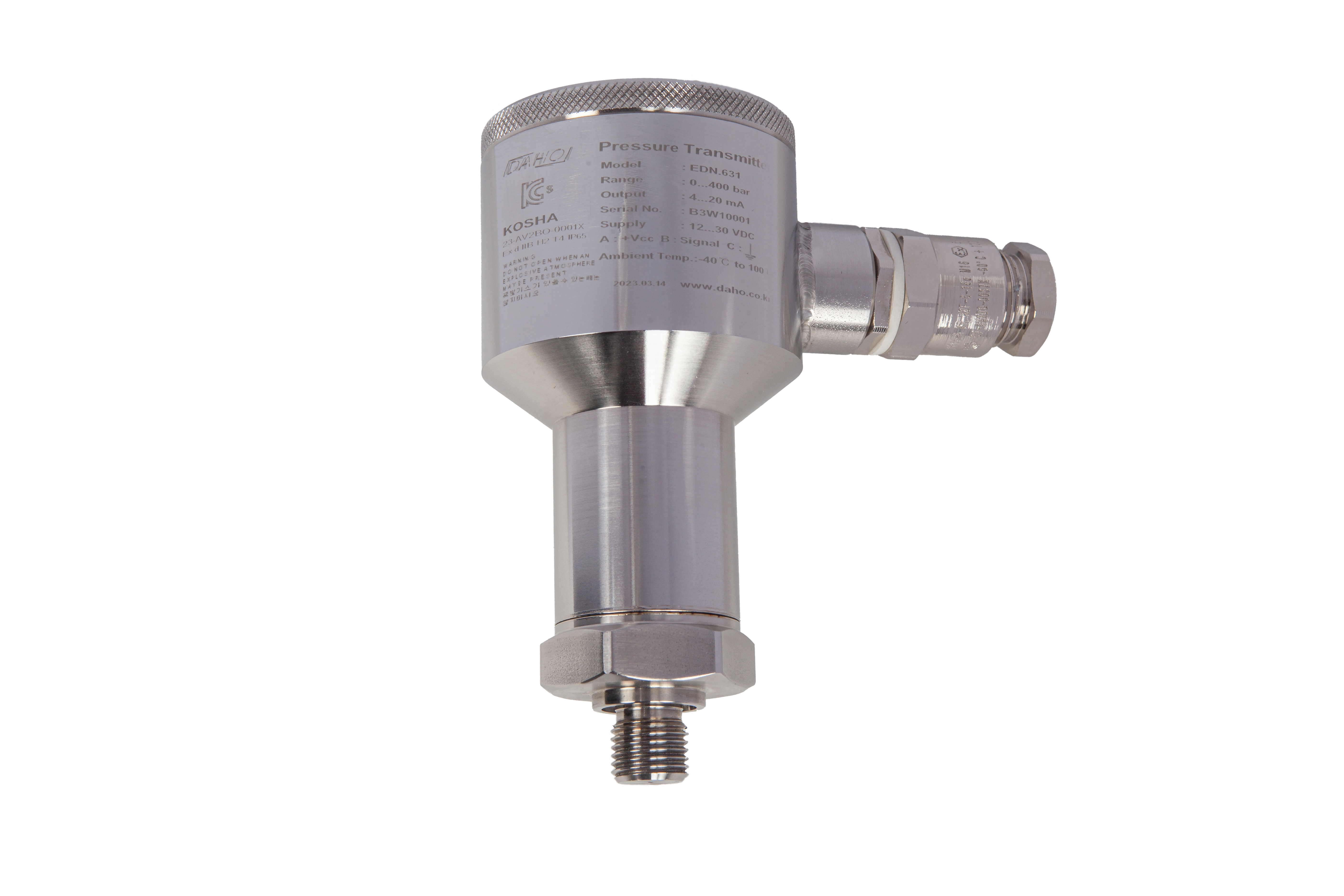

The EDN.610 pressure transmitter is designed with both the housing and wetted parts made entirely of stainless steel, offering excellent corrosion resistance and hygiene. It is certified for use in hazardous areas, having received explosion-proof (Ex d IIC T6, IP65) certification, and has been approved by KOSHA (Korea Occupational Safety and Health Agency).

Suitable for Hazardous Areas

The EDN.610 is specifically designed for safe operation in hazardous environments, including:

·    Oil refining and petrochemical plants

·    Semiconductor processing lines

·    Nuclear power plants

·    Oxygen supplying stations

·    Gas compressor stations

Its all-stainless-steel construction also makes it suitable for hygiene-critical industries, such as food & beverage, pharmaceutical, and medical applications.

High-Precision Piezoresistive Silicon Pressure Sensor

Equipped with a highly accurate piezoresistive silicon pressure sensor, the EDN.610 incorporates advanced electronic component technologies and refined PCB design. The signal amplification module undergoes rigorous reliability tests to ensure stability in all operating conditions:

·    Noise

·    Burst

·    Insulation

·    Surge

Each unit is subjected to individual calibration and testing to ensure consistent analog signal output and dependable performance across various applications.

Accuracy Options

The EDN.610 offers multiple accuracy levels based on customer requirements:

• Standard: ±0.35% F.S
• Optional: ±0.25%, ±0.1%, ±0.05% F.S

Applications

This versatile and precise pressure transmitter is ideal for use in a wide range of industries, including:

·    Hydraulic and pneumatic systems

·    Oil refining and chemical processing

·    Automotive manufacturing

·    Heavy industry and shipbuilding

·    Semiconductor production

·    Pharmaceutical and medical equipment

·    Food and beverage processing

·    Power generation and nuclear energy

·    Water and wastewater treatment

Installation Flexibility & Compatibility

To accommodate various process environments, the EDN.610 can be combined with special diaphragm seals (MDB, MDF, MDI, etc.) or chemical flanges. It also supports a wide range of process connections and electrical plug options to meet the specific needs of industrial installations.





Specification

Pressure range	-1…0 bar to 0…1000 bar
Accuracy	[Standard] ± 0.35% F.S [Options] ± 0.25% ± 0.1% ± 0.05%
Electrical Cable Entry	Frame proof connecting cable gland  M12 plug
Signal Output	4…20mA, 2-wire system 0...10V, 3-wire system 0...5V, 3-wire system 1...5V, 3-wire system
Temperature range	-20…100℃ / standard -40…125℃ / option
