Series 9L

Piezoresistive OEM pressure transducers with very high stability in a compact design

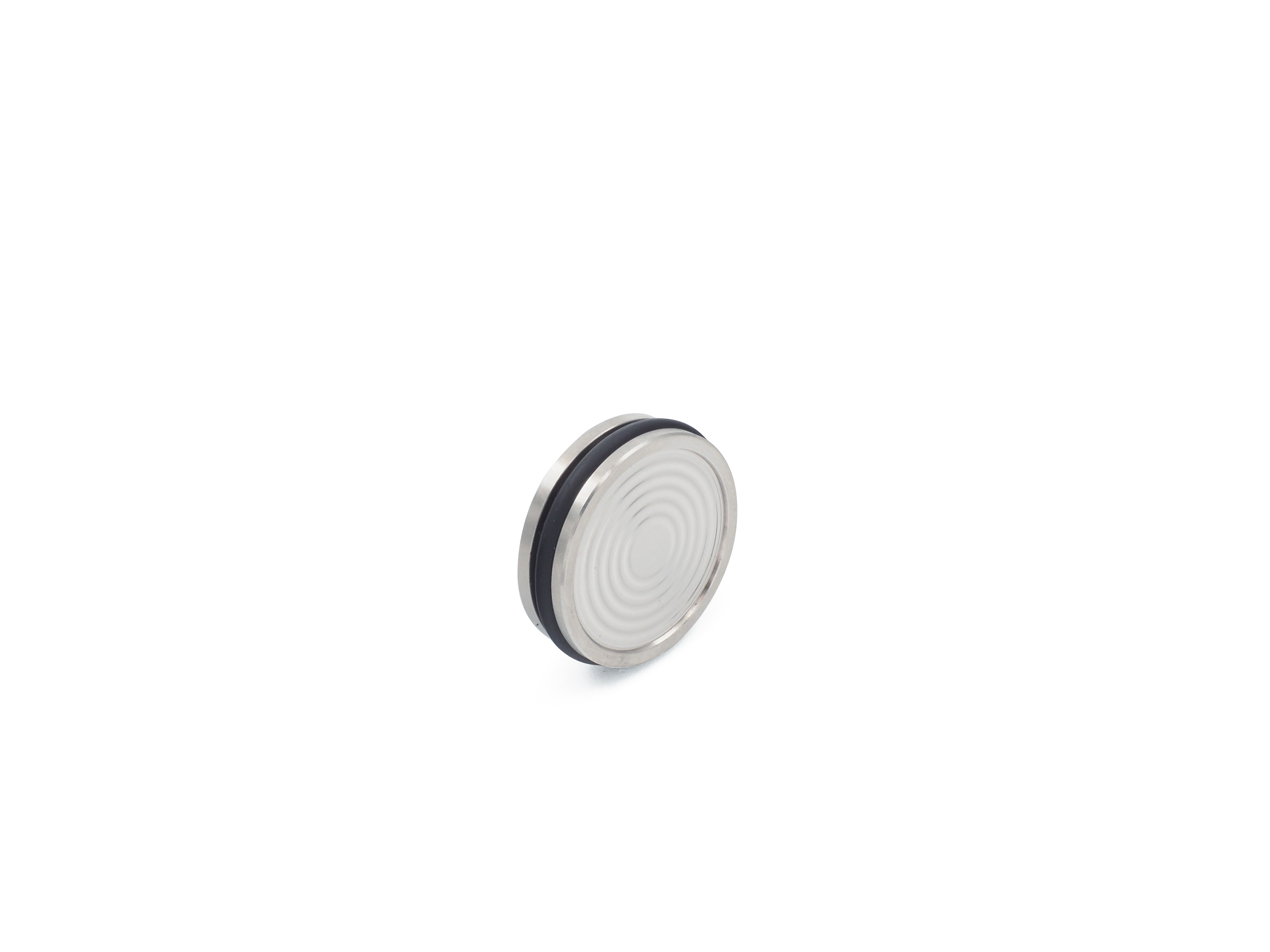

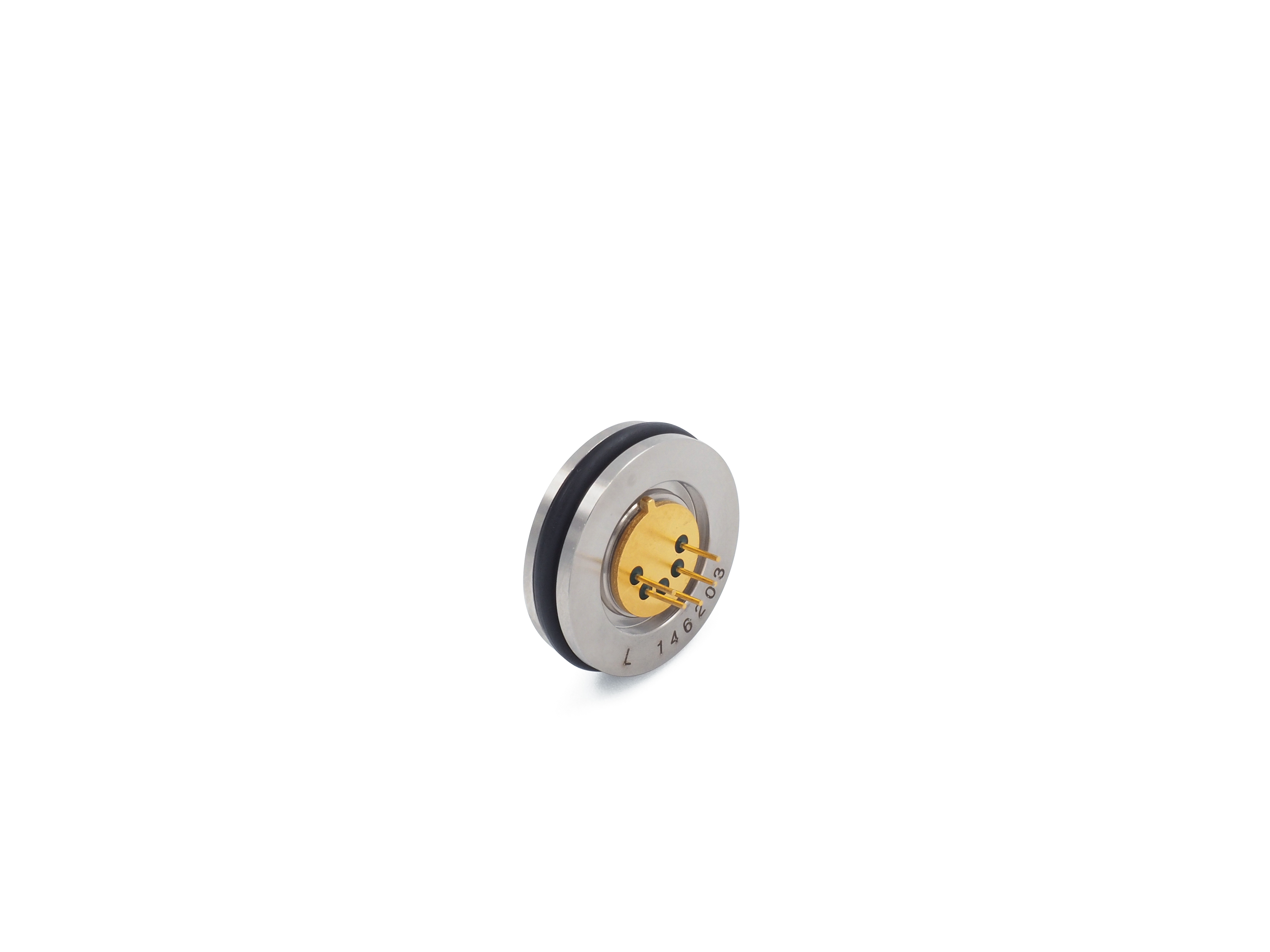

The pressure transducers  of the 9L series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive  pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.



Pressure ranges	0...0.2 to 0...200 bar
Accuracy	±0.25% FS
Long Term Stability	±0.2% FS
Dimensions	⌀ 19 mm x 5,5 mm
Temperature Range	-40…125 °C
