Series 6LHP

Piezoresistive OEM high-pressure transducers with a wide range of applications

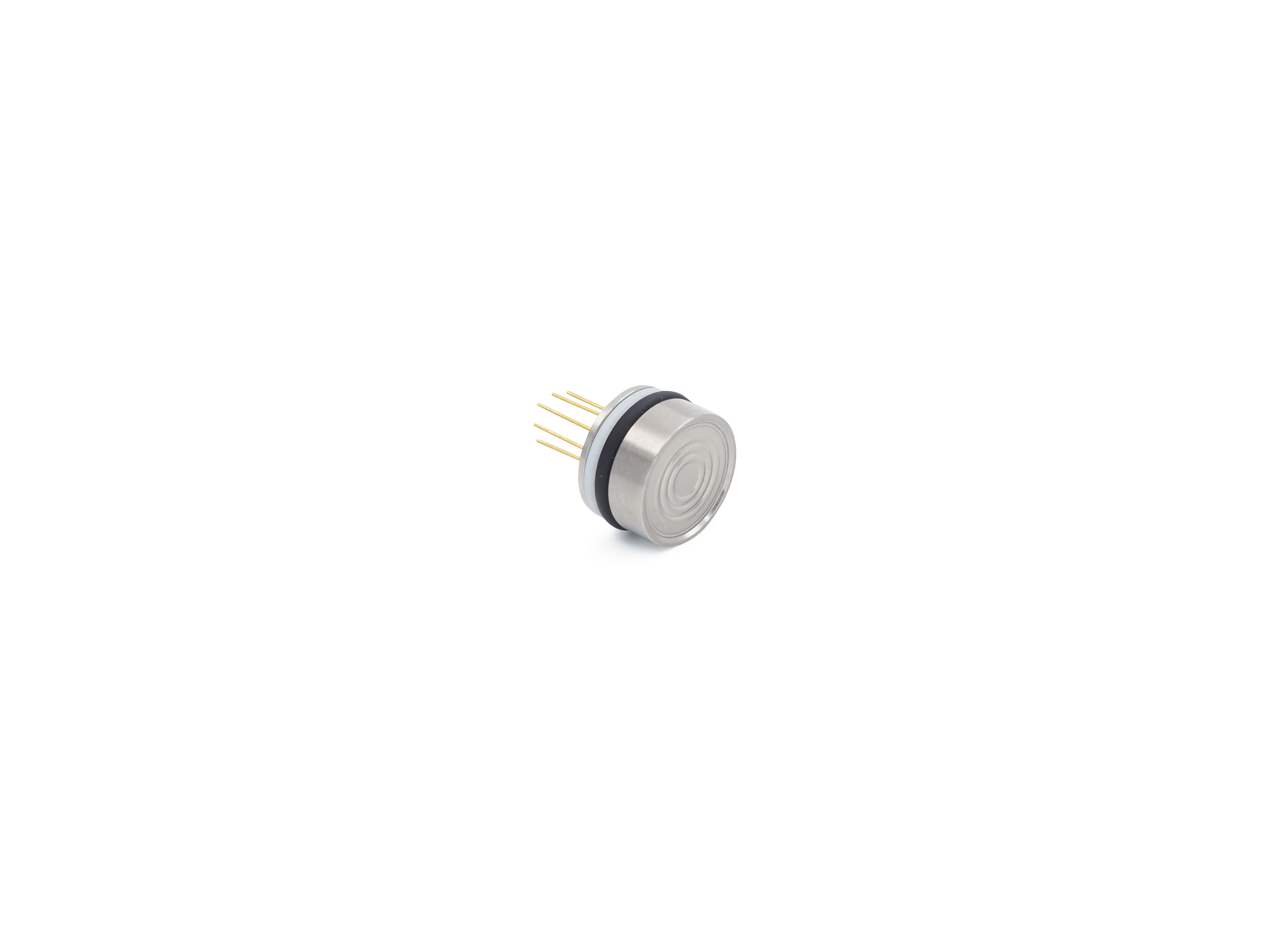

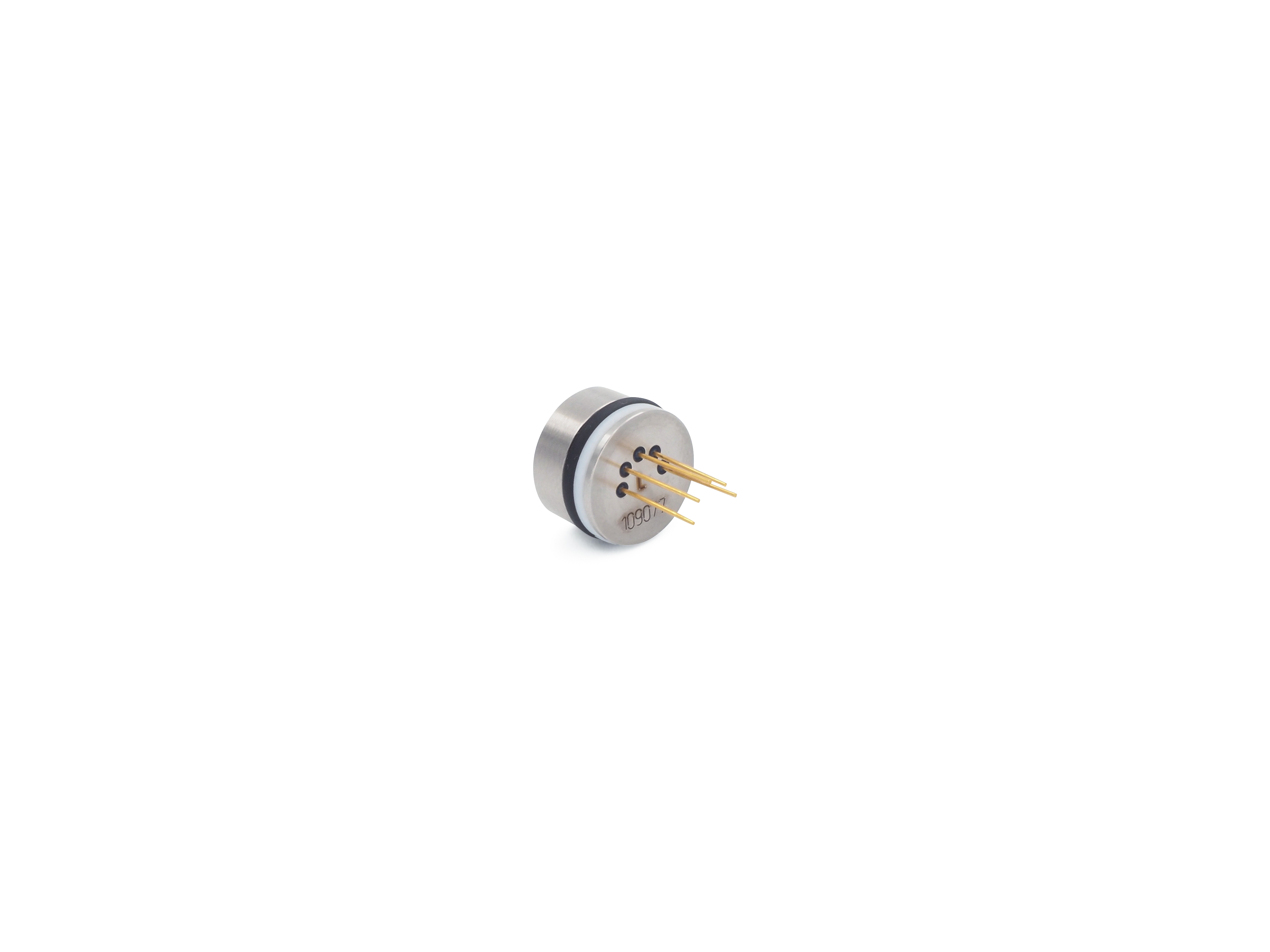

The high-pressure transducers of the 6LHP series have a robust housing made of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive  pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.

Pressure ranges	0…100 to 0…2000 bar
Accuracy	±0,5% FS
Long Term Stability	±0.25% FS
Dimensions	⌀ 13 mm x 8 mm
Temperature Range	-40…150 °C
Material	Steel 1.4435, Hastelloy C-276, Inconel 718
